Sequencing Batch Reactor (SBR-STP): The Ultimate Guide to Smart Sewage Treatment
Introduction: Why SBR-STP Is the Future of Wastewater Treatment
With rapid urbanization, industrial expansion, and tightening environmental regulations, the need for efficient and reliable sewage treatment plants (STPs) has never been greater. Traditional wastewater treatment systems often require large footprints, complex civil structures, and high operational costs. This is where Sequencing Batch Reactor (SBR-STP) technology stands out as a modern, compact, and highly efficient solution.
The Sequencing Batch Reactor (SBR) is an advanced form of the activated sludge process that treats wastewater in time-sequenced batches within a single reactor tank. Unlike conventional continuous-flow systems, SBR integrates multiple treatment stages—equalization, aeration, sedimentation, and decanting—into one basin. This makes it one of the most versatile and widely adopted technologies for municipal, commercial, and industrial sewage treatment.
Today, SBR-STPs are extensively used in residential apartments, IT parks, hotels, hospitals, industrial estates, educational institutions, and decentralized water treatment projects across India and globally.
What Is a Sequencing Batch Reactor (SBR-STP)?
A Sequencing Batch Reactor (SBR-STP) is a fill-and-draw type biological wastewater treatment system. Instead of wastewater flowing continuously through different tanks, the entire treatment process occurs in a single reactor tank through a series of timed phases.
In simple terms, an SBR works like a smart washing machine for sewage:
Sewage enters the tank.
Biological treatment occurs.
Solids settle.
Clean water is decanted.
The cycle repeats.
This time-based operation allows high flexibility, better control, and superior effluent quality compared to conventional systems.
Basic Components of an SBR-STP System
A typical SBR-STP consists of the following main components:
1. Inlet & Screening System
Removes large debris, plastics, cloth, and floating matter before sewage enters the biological reactor.
2. Equalization Tank (Optional)
Balances flow and organic load variations to ensure consistent treatment performance.
3. SBR Reactor Tank
The heart of the system where all biological treatment happens.
4. Aeration System
Blowers and diffusers supply oxygen for aerobic bacteria.
5. Decanter System
Mechanism that removes treated water without disturbing settled sludge.
6. Sludge Handling System
Includes sludge pump and drying beds or filter press.
7. Control Panel & Automation
PLC or timer-based system that controls cycle phases automatically.

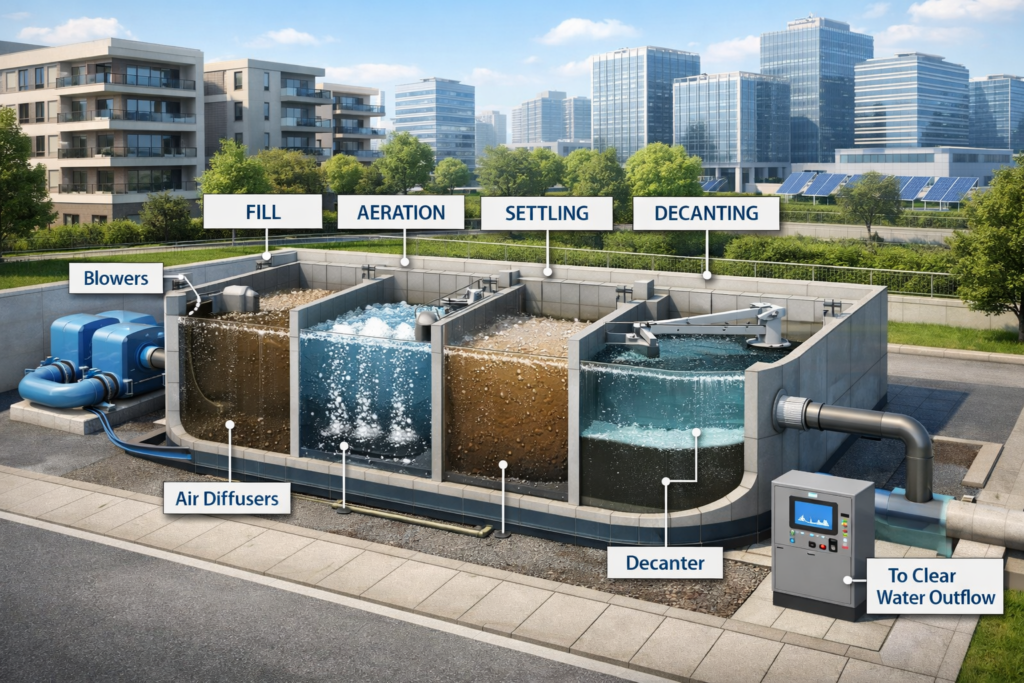

The 5 Working Phases of SBR-STP
1. Fill Phase
Raw sewage enters the reactor. Microorganisms begin consuming organic pollutants.
2. React (Aeration) Phase
Oxygen is supplied. Bacteria oxidize BOD, COD, and ammonia.
3. Settle Phase
Aeration stops. Sludge settles at the bottom forming clear water on top.
4. Decant Phase
Treated water is withdrawn using a decanter.
5. Idle Phase
Excess sludge is removed. The system prepares for the next cycle.
Each cycle typically lasts between 4 to 8 hours, depending on design and load.
Biological Process in SBR-STP
SBR systems rely on activated sludge microorganisms:
Heterotrophic bacteria remove organic matter.
Nitrifying bacteria convert ammonia to nitrate.
Denitrifying bacteria remove nitrogen under anoxic conditions.
Phosphorus accumulating organisms (PAOs) remove phosphorus.
Because SBR allows precise control of oxygen levels and reaction time, it achieves biological nutrient removal (BNR) without extra tanks.
Key Design Parameters of SBR-STP
| Parameter | Typical Value |
|---|---|
| Hydraulic Retention Time (HRT) | 6–12 hours |
| Sludge Retention Time (SRT) | 15–30 days |
| MLSS | 3000–6000 mg/L |
| F/M Ratio | 0.05–0.2 |
| Dissolved Oxygen | 2–4 mg/L |
| Cycle Time | 4–8 hours |
Advantages of SBR-STP
1. Compact Footprint
Requires up to 40% less space than conventional STPs.
2. High Treatment Efficiency
Produces effluent quality:
BOD < 10 mg/L
COD < 50 mg/L
TSS < 10 mg/L
3. No Need for Secondary Clarifier
Settling happens inside the reactor itself.
4. Low Civil Construction Cost
Fewer tanks = lower capital investment.
5. Fully Automated Operation
Minimal human intervention.
6. Energy Efficient
Optimized aeration cycles reduce power consumption.
7. Ideal for Decentralized STPs
Perfect for small and medium installations.
Limitations of SBR-STP
Despite its advantages, SBR has certain limitations:
Requires reliable automation.
Not suitable for extremely large flows (>50 MLD).
Needs trained operator for troubleshooting.
Sensitive to toxic industrial effluents.
SBR-STP vs Conventional Activated Sludge Process (ASP)
| Feature | SBR | ASP |
|---|---|---|
| Tanks Required | 1 | 4–5 |
| Space | Low | High |
| Automation | High | Medium |
| Capital Cost | Medium | High |
| Operation | Simple | Complex |
| Flexibility | Very High | Low |
Applications of SBR-STP
Municipal Sewage
Townships
Residential colonies
Smart cities
Commercial Buildings
IT parks
Malls
Hotels
Healthcare
Hospitals
Laboratories
Industrial
Pharma
Food processing
Textile
Educational Institutions
Schools
Universities
Hostels
Treated Water Reuse from SBR-STP
SBR-treated water can be reused for:
Toilet flushing
Gardening & landscaping
Cooling towers
Construction
Car washing
Firefighting storage
This reduces freshwater demand by 30–50%.
Sludge Management in SBR-STP
Excess sludge is:
Pumped to sludge drying beds or filter press
Dewatered
Used as compost or disposed safely
Sludge generation is relatively low due to longer SRT.
Automation and Smart Control in Modern SBR Systems
Modern SBR-STPs use:
PLC/SCADA systems
Online sensors (DO, pH, ORP)
Cloud monitoring
AI-based process optimization
This ensures:
Predictive maintenance
Energy optimization
Remote operation
Regulatory compliance
Compliance with Pollution Control Board (PCB)
SBR-STPs easily meet:
CPCB (India)
SPCB norms
ISO 14001
MoEF guidelines
Typical discharge standards:
| Parameter | Limit |
|---|---|
| BOD | < 10 mg/L |
| COD | < 50 mg/L |
| TSS | < 10 mg/L |
| NHâ‚„-N | < 5 mg/L |
| Oil & Grease | < 5 mg/L |
Cost of SBR-STP in India
Indicative costs:
| Capacity | Approx Cost |
|---|---|
| 10 KLD | ₹6–8 lakhs |
| 50 KLD | ₹18–25 lakhs |
| 100 KLD | ₹30–40 lakhs |
| 500 KLD | ₹1.2–1.8 crore |
Operating cost: ₹8–15 per KL
SBR-STP Installation Process
Site survey
Hydraulic & process design
Civil construction
Equipment installation
Piping & electrical
Trial run
Performance testing
Handover & training
Maintenance of SBR-STP
Daily:
Check blowers
Monitor DO
Observe sludge
Weekly:
Clean diffusers
Check decanter
Monthly:
Sludge wasting
Sensor calibration
Common Problems & Troubleshooting
| Problem | Cause | Solution |
|---|---|---|
| Foaming | High F/M | Reduce load |
| Poor settling | Bulking sludge | Adjust aeration |
| High ammonia | Low DO | Increase aeration |
| Odor | Anaerobic zones | Improve mixing |
Why SBR Is Ideal for Indian Conditions
India faces:
Space constraints
Power shortages
High load fluctuations
Strict PCB norms
SBR addresses all these with:
Modular design
Energy efficiency
Automation
High resilience
Future of SBR-STP Technology
Emerging trends:
AI-based process control
IoT-enabled monitoring
Hybrid SBR-MBR systems
Zero Liquid Discharge (ZLD)
Digital twins for STP optimization
Conclusion: Is SBR-STP the Right Choice?
If you are looking for a compact, high-performance, low-maintenance, and regulation-compliant sewage treatment solution, then Sequencing Batch Reactor (SBR-STP) is one of the best technologies available today.
It offers:
Excellent effluent quality
Minimal footprint
High automation
Lower lifecycle cost
Strong environmental impact
For modern infrastructure, smart cities, green buildings, and sustainable industries, SBR-STP is not just a technology—it is the future of wastewater management.
